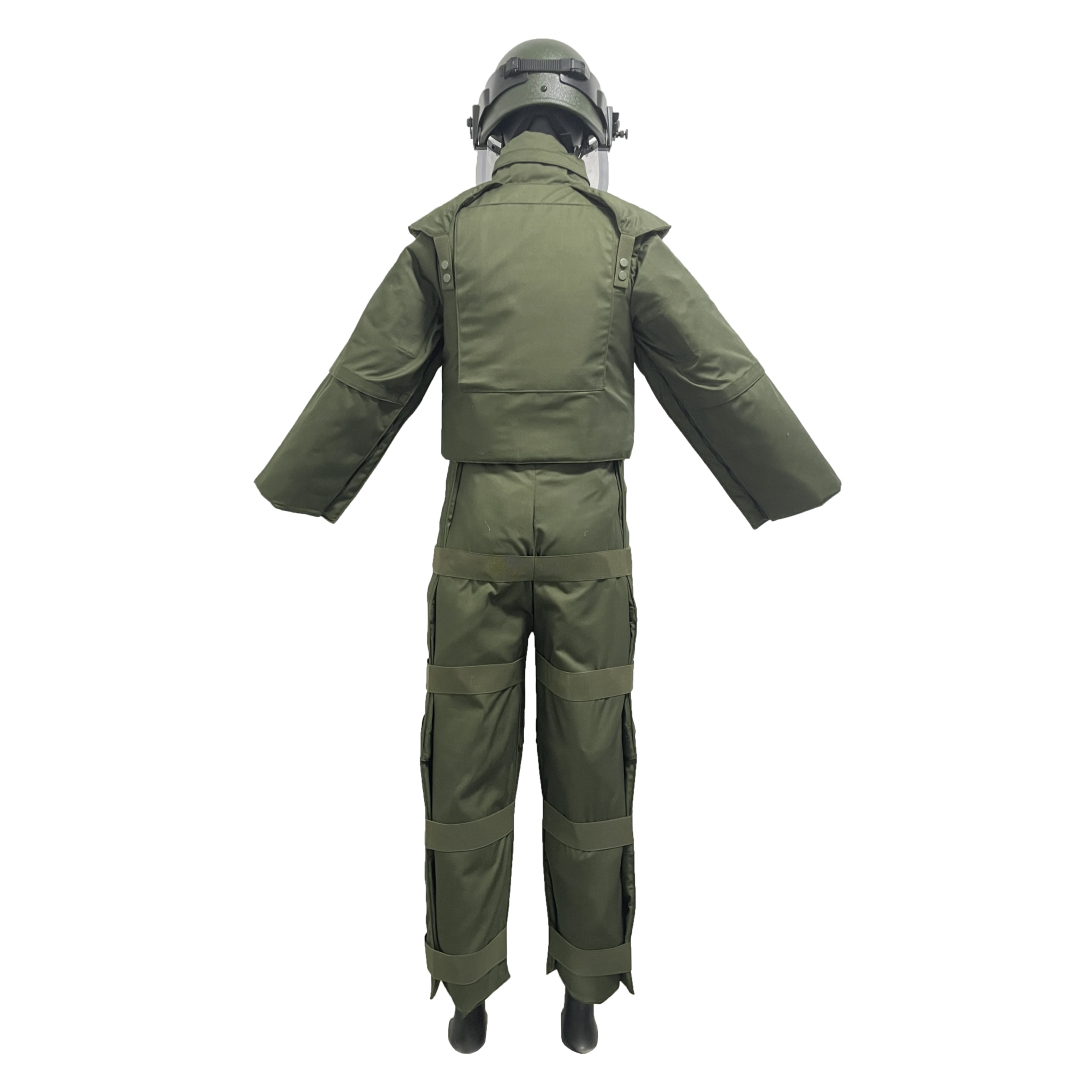

Demining suit
The search explosive server is divided into two sizes, large and medium, which are suitable for persons with a height above 180cm (large) and 160cm--180cm (medium). The total weight of the explosive search suit: not more than 11.0kg Total weight of explosion-proof helmet and face shield: no more than 2.8kg
- Category
- EOD Equipment
- Application
- See the product overview for application and configuration details.
- Service
- OEM/ODM and technical support available
- Inquiry
- Specifications available on request
Product Structure
Components: Helmet, visor, chest protection with an insert, back, arm, neck, shoulder, leg, groin, hand and foot protection.
Materials: Nomex flame-resistant outer fabric and woven aramid ballistic layers. Chest, back, arm, neck, shoulder, groin, hand, foot and shoe protection use 15 layers; thigh protection uses 17 layers; lower-leg protection uses 16 layers.
Armor insert: 250 x 300 mm; an 8 mm curved PE plate combined with 8 mm silicon carbide.
Helmet: Shell and suspension cushioning system; shell made from 10.0 mm PE or woven aramid material.
Visor: Support frame, fastening device, connecting components and travel stops. Window laminate: 1 mm PC + 1.25 mm PU + 10 mm PMMA + 1.25 mm PU + 8 mm PC.
Product Advantages
Lightweight comfort: Lighter than a heavy EOD suit, with ventilation and heat dissipation to support prolonged, intensive field demining while reducing physical effort.
Targeted blast and fragment protection: Multiple flexible composite layers with reinforced chest and groin inserts protect against high-speed mine fragments, stones and low-pressure blast waves.
Ergonomic flexibility: Flexible joint construction allows detection, digging, obstacle clearing, crawling and kneeling without restricting precise demining movements.
All-weather protection: Water resistance, antistatic properties, flame resistance and resistance to aging and UV exposure support outdoor use in mud, mountains, rain and temperature extremes.
Adjustable quick donning: An easy-opening structure and multidirectional fit adjustments accommodate different body sizes, enabling fast fitting and removal with a stable fit.
Durable and reusable: Stable, tear- and abrasion-resistant materials permit repeated use when there is no structural impact damage, supporting routine field demining and frequent training at lower maintenance cost.
V50 ballistic-limit test results for this sample against 1.1g cylindrical wedge-shaped fragment-simulating projectiles under normal temperature and humidity conditions
Helmet V50 ballistic limit: >690m/s;
Visor V50 ballistic limit: >730m/s;
Chest protection V50 ballistic limit (including insert): >1770m/s;
Back protection ballistic limit: >480m/s;
Arm protection V50 ballistic limit: >410m/s;
Thigh protection V50 ballistic limit: >480m/s;
Lower-leg protection V50 ballistic limit: >490m/s;
Applicable Standards:
GA/T950-2019"V50 Test Methods for Ballistic Materials and Products"
GA293-2012"Police Ballistic Helmets and Visors"
Applications
Manual demining and unexploded-mine searches in border mountains, undeveloped land and former minefields.
Clearance of unexploded ordnance and abandoned blasting equipment at construction sites, roads, bridges, mines and post-disaster rubble sites.
Routine demining, field blast-protection and hazardous-site clearance by engineer units and border-duty teams.
Hazard searches in high-risk outdoor areas, providing protection during work around small explosive items and scattered hazardous fragments.
Demining training, outdoor blast-response drills and engineer skills assessment.
International peacekeeping, demining assistance and outdoor disaster-rescue operations involving explosive hazards.
